Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove in the order indicated in the table.

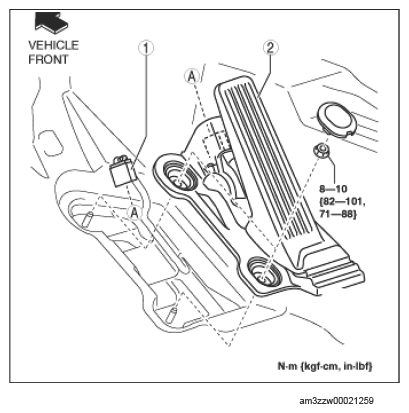

    Fig 1: Accelerator Pedal Components Location With Torque Specification (SKYACTIV-G - VIN M)
    G14579084Courtesy of MAZDA MOTORS CORP.
    ACCELERATOR PEDAL COMPONENT OPERATIONS

    Component No: Refer to
    1 APP sensor connector
    2 Accelerator pedal
  3. Install in the reverse order of removal.
