Protector Installation Note

  1. Install the protector.
  2. Install the ground cable to the protector.

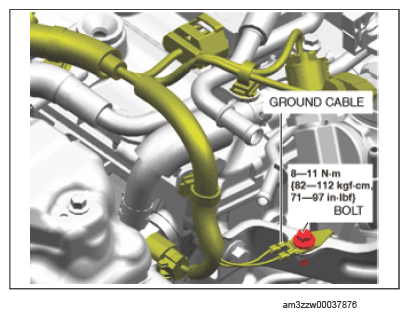

    Fig 1: Ground Cable And Bolt With Torque Specification
    G14579404Courtesy of MAZDA MOTORS CORP.

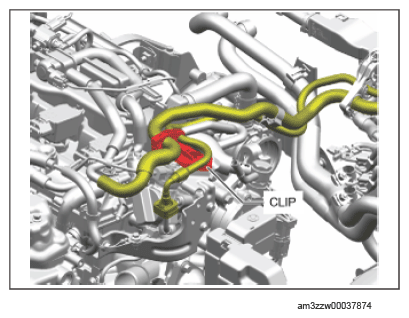

  3. Install the clip to the protector.
    G14579399Courtesy of MAZDA MOTORS CORP.
