Emergency Call Unit Battery Removal/Installation

  1. Disconnect the negative battery terminal.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel
    7. Emergency call unit (See EMERGENCY CALL UNIT REMOVAL/INSTALLATION .)

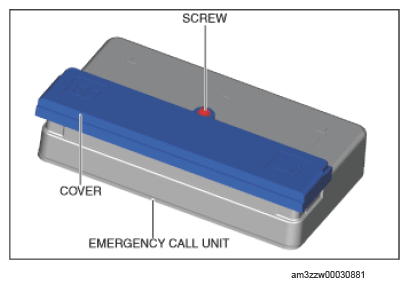

  3. Remove the screw.
    G15735611Courtesy of MAZDA MOTORS CORP.

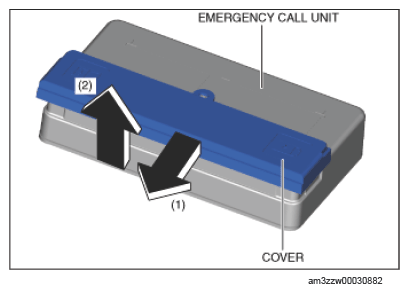

  4. Move the cover in the direction of the arrows in the order of (1) and (2) and remove it from the emergency call unit.
    G15735612Courtesy of MAZDA MOTORS CORP.

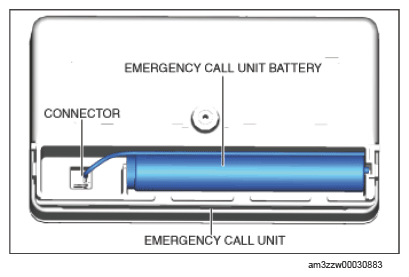

  5. Disconnect the connector.
    G15735613Courtesy of MAZDA MOTORS CORP.
  6. Remove the emergency call unit battery.
  7. Install in the reverse order of removal.
