Generator Disassembly/Assembly (VIN Y)

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

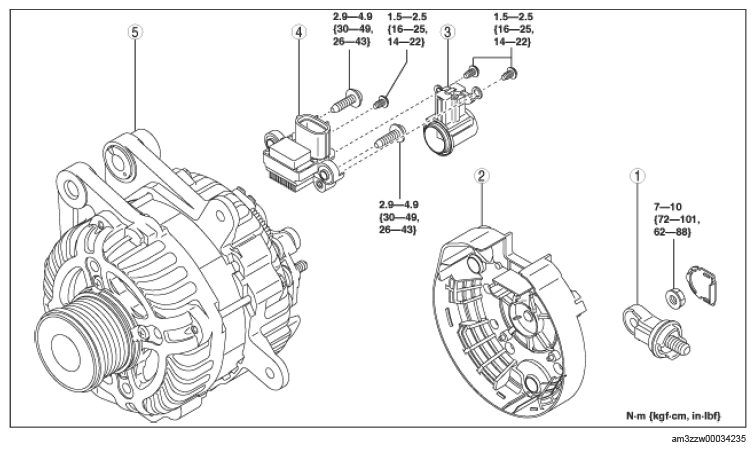

    Fig 1: Generator Components Location With Torque Specification - VIN Y (US)
    G14579742Courtesy of MAZDA MOTORS CORP.
    GENERATOR COMPONENT OPERATIONS

    Component No. Refer to
    1 Terminal B component
    2 Rear cover
    3 Brush holder
    4 Regulator assy
    5 Generator
