Battery Removal/Installation (VIN Y): Notes

Install in the reverse order of removal.

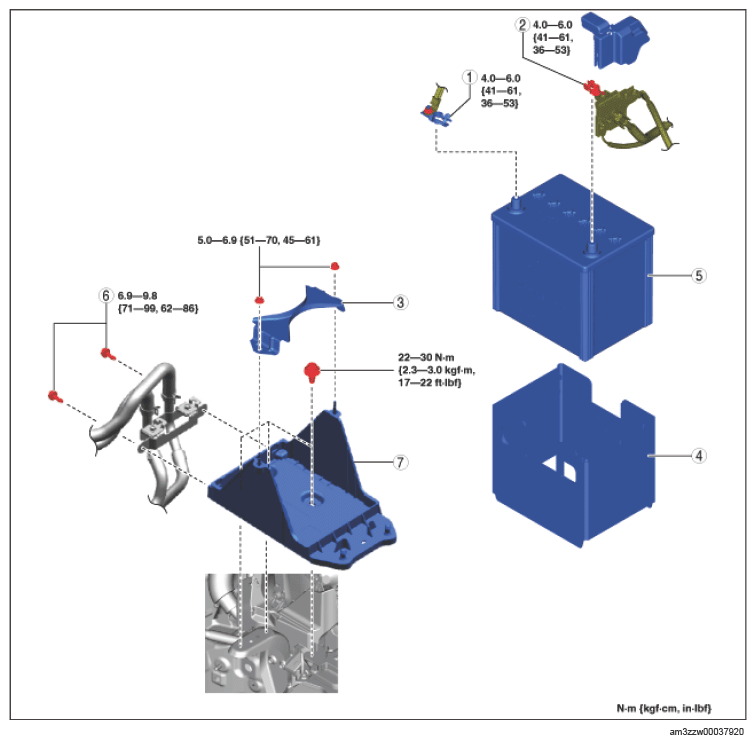

Fig 1: Battery Components Location With Torque Specification - VIN Y (US)

Courtesy of MAZDA MOTORS CORP.

BATTERY COMPONENT OPERATIONS

Component No.	Refer to
1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .) (See NEGATIVE BATTERY TERMINAL CONNECTION NOTE .)
2	Positive battery cable
3	Battery clamp
4	Battery box (See BATTERY BOX INSTALLATION NOTE .)
5	Battery
6	Heater hose bracket bolt
7	Battery tray (See BATTERY TRAY REMOVAL NOTE .) (See BATTERY TRAY INSTALLATION NOTE .)
