Display Audio (DA) Removal/Installation

NOTE:
  • The DA has stored vehicle specification information.
  • A new DA does not have any stored vehicle specification information.
  • When the ignition is switched ON (engine off or on) after replacing the DA, the unit reads and stores the vehicle specification information sent via CAN communication from the body control module (BCM).
  • The Bluetooth® pairing information stored in the DA cannot be written to a new DA. Therefore, the Bluetooth® pairing information will be eliminated if the DA is replaced. Before replacing the DA, explain to the customer that the Bluetooth® pairing resetting is required.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove the bolts.

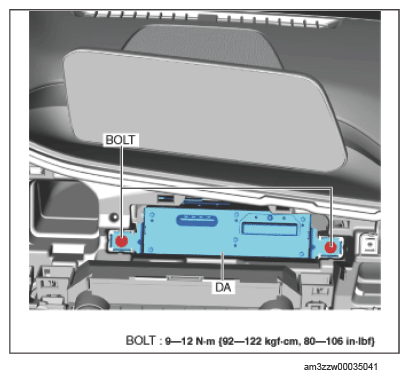

    Fig 1: Display Audio Bolts With Torque Specification
    G15721240Courtesy of MAZDA MOTORS CORP.
  4. Remove the DA in the direction of the arrow shown in the figure below.

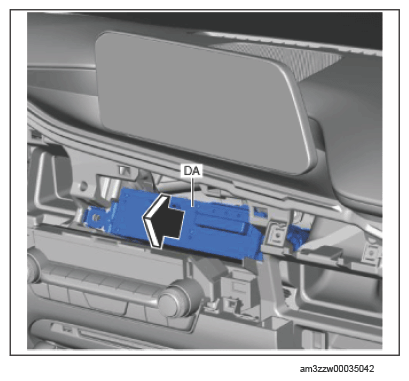

    G15721241Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connectors.

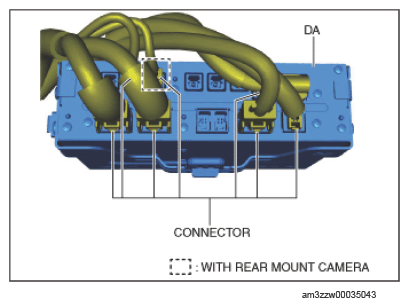

    G15721242Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
