Clutch Location Index

WARNING: This page is about a different variant/trim than selected.

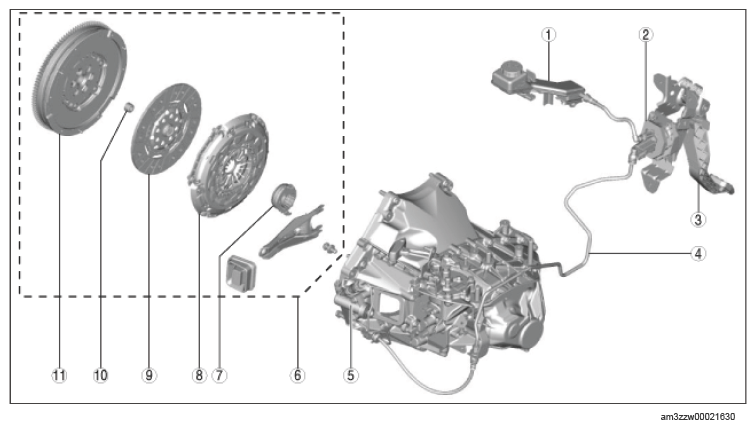

Fig 1: Clutch Components Location (C66M-R)
G14581042Courtesy of MAZDA MOTORS CORP.
CLUTCH COMPONENT OPERATIONS

Component No. Refer to
1 Reserve tank
(See CLUTCH FLUID INSPECTION .)
(See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
2 Clutch master cylinder
(See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION .)
(See CLUTCH STROKE SENSOR REMOVAL/INSTALLATION .)
3 Clutch pedal
(See CLUTCH PEDAL INSPECTION .)
(See CLUTCH PEDAL REMOVAL/INSTALLATION .)
(See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
4 Clutch pipe and hose
(See CLUTCH FLUID LEAKAGE INSPECTION .)
(See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
5 Clutch release cylinder
(See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION .)
6 Clutch unit
(See CLUTCH UNIT REMOVAL/INSTALLATION .)
7 Clutch release collar
(See CLUTCH UNIT REMOVAL/INSTALLATION .)
(See CLUTCH RELEASE COLLAR INSPECTION .)
8 Clutch cover
(See CLUTCH UNIT REMOVAL/INSTALLATION .)
(See CLUTCH COVER INSPECTION .)
9 Clutch disc
(See CLUTCH UNIT REMOVAL/INSTALLATION .)
(See CLUTCH DISC INSPECTION .)
10 Pilot bearing
(See CLUTCH UNIT REMOVAL/INSTALLATION .)
(See PILOT BEARING INSPECTION .)
11 Dual-mass flywheel
(See CLUTCH UNIT REMOVAL/INSTALLATION .)
(See DUAL-MASS FLYWHEEL INSPECTION .)
