Plug Hole Plate Removal/Installation: Installation

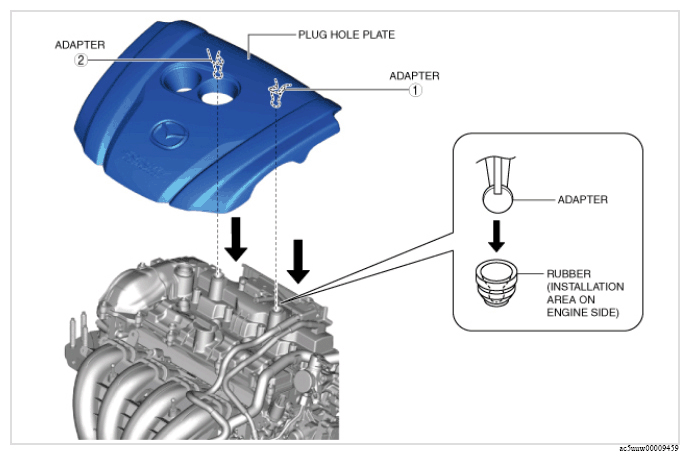

  1. Press the plug hole plate in the order shown in the figure below to insert the adapter to the rubber on the engine side.
    G13174654Courtesy of MAZDA MOTORS CORP.

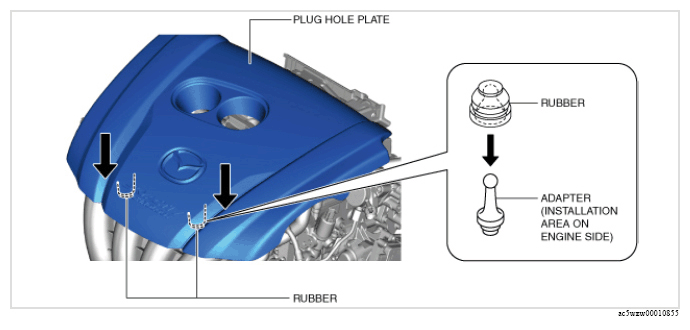

  2. Press the front part of the plug hole plate at the same time to insert the rubber to the adapter on the engine side.
    G13174655Courtesy of MAZDA MOTORS CORP.
