No. 4 Engine Mount: Notes

CAUTION:

Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT EGR COOLER)] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH EGR COOLER)] .)
- Air hose
- Air cleaner cover
- Air cleaner element
- Air cleaner case
- Fresh-air duct
- Resonance chamber
Remove the PCM component. (See PCM REMOVAL/INSTALLATION .)
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the control cable. (MTX) (See CONTROL CABLE REMOVAL/INSTALLATION [C66M-R] .)
Remove the bolt shown in the figure below and set the ground cable aside.

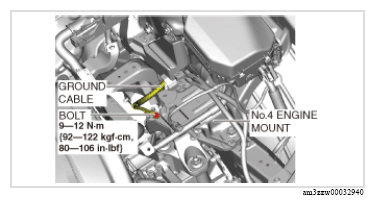

Fig 1: No. 4 Engine Mount, Ground Cable And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

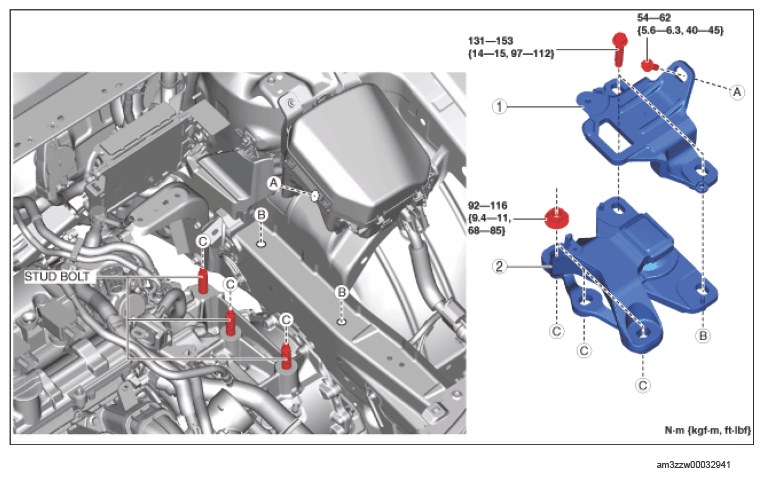

Fig 2: Engine Mount Components Location With Torque Specification - No. 4 Engine Mount

Courtesy of MAZDA MOTORS CORP.

ENGINE MOUNT COMPONENT OPERATIONS

Component No.	Refer to
1	No. 4 engine mount bracket (See NO. 4 ENGINE MOUNT BRACKET REMOVAL NOTE .) (See NO. 4 ENGINE MOUNT BRACKET AND RUBBER INSTALLATION NOTE .)
2	No. 4 engine mount rubber (See NO. 4 ENGINE MOUNT RUBBER REMOVAL NOTE .) (See NO. 4 ENGINE MOUNT BRACKET AND RUBBER INSTALLATION NOTE .)
