No. 3 Engine Mount: Notes

CAUTION:

Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the bolt shown in the figure below and set the ground cable aside.

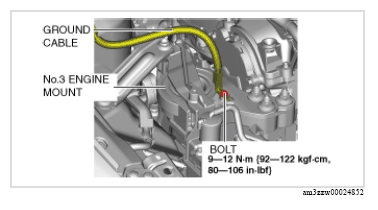

Fig 1: No. 3 Engine Mount, Ground Cable And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Set the cooler hose (LO) aside. (See REFRIGERANT LINE REMOVAL/INSTALLATION [ SKYACTIV-G VIN M] .)
Set the coolant reserve tank aside.
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

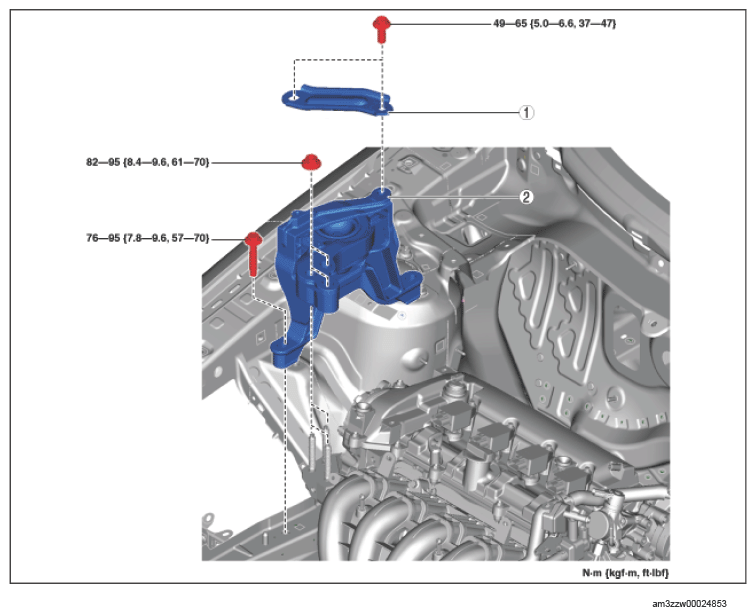

Fig 2: Engine Mount Components Location With Torque Specification - No. 3 Engine Mount
Courtesy of MAZDA MOTORS CORP.

ENGINE MOUNT COMPONENT OPERATIONS

Component No.	Refer to
1	No. 3 engine mount bracket
2	No. 3 engine mount (See NO. 3 ENGINE MOUNT REMOVAL NOTE .) (See NO. 3 ENGINE MOUNT INSTALLATION NOTE .)
