Exhaust Manifold Insulator Installation Note

Temporarily tighten the exhaust manifold insulator.
Tighten the exhaust manifold insulator in the order shown in the figure below.

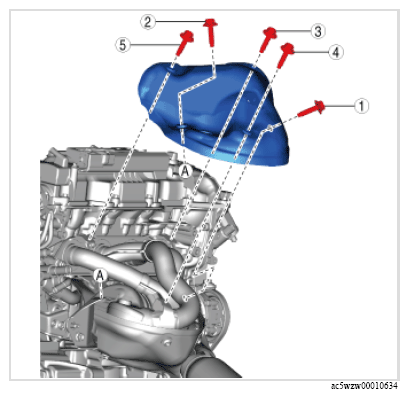

Fig 1: Exhaust Manifold Insulator bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Install the insulators shown in the figure below.

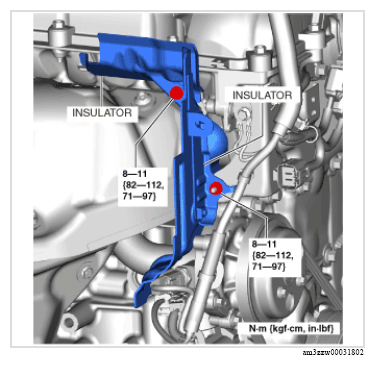

Fig 2: Insulators And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

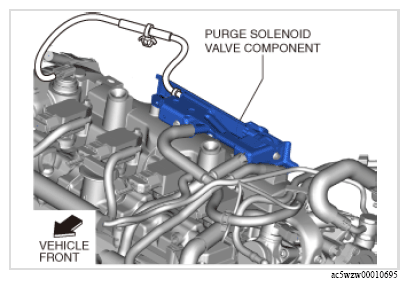

Install the purge solenoid valve component.

Courtesy of MAZDA MOTORS CORP.

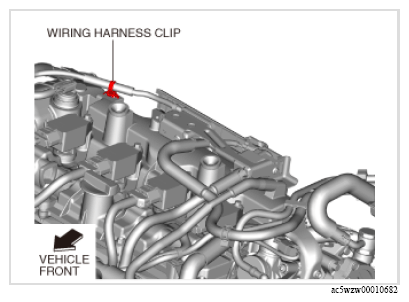

Install the wiring harness clip shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

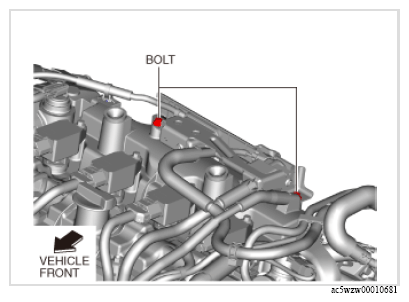

Install the bolts shown in the figure below. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
