Emergency Call Speaker/Microphone Removal/Installation

  1. Disconnect the negative battery terminal.
  2. Remove the front map light.
  3. Remove the screws.

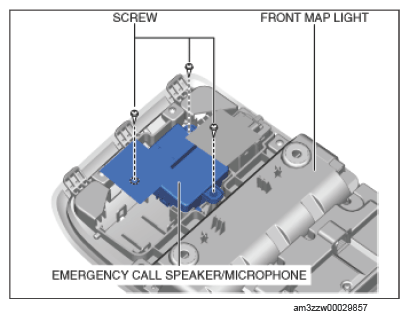

    G15735606Courtesy of MAZDA MOTORS CORP.
  4. Remove the emergency call speaker/microphone.
  5. Install the reverse order of removal.
