Generator Internal Parts: Rotor

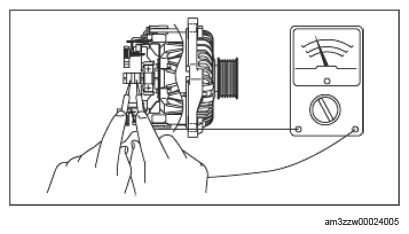

Measure the resistance between the slip rings using a ohmmeter.

Courtesy of MAZDA MOTORS CORP.
- If not within specification, replace the generator.
  Generator rotor resistance (between slip rings) [20°C {68°F}]

  1.4-1.6 ohms
