Battery Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

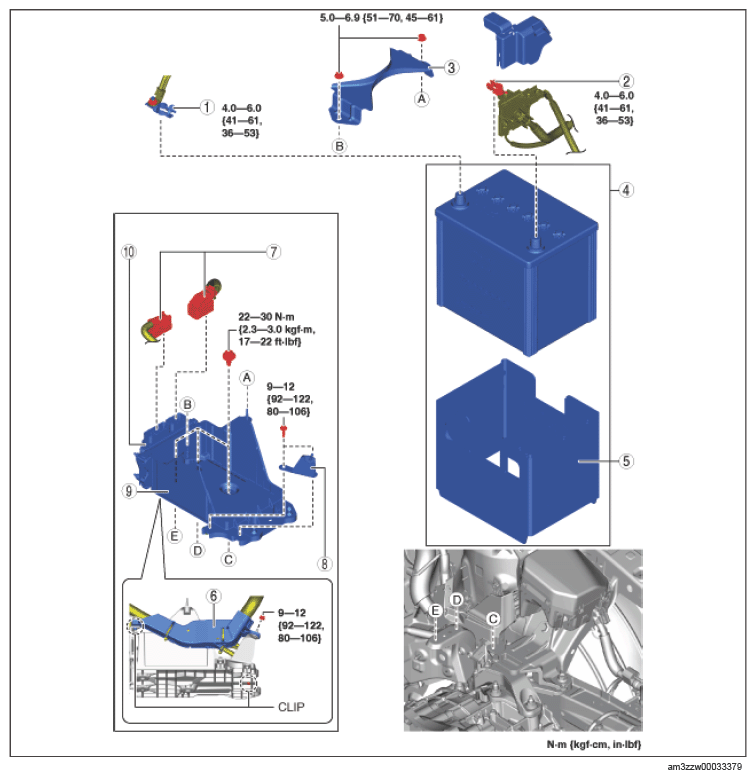

   Fig 1: Battery Components Location With Torque Specification - SKYACTIV-G (VIN M - US)

   Courtesy of MAZDA MOTORS CORP.
   BATTERY COMPONENT OPERATIONS



   Component No.	Refer to
   1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .) (See NEGATIVE BATTERY TERMINAL CONNECTION NOTE .)
   2	Positive battery terminal (See POSITIVE BATTERY TERMINAL CONNECTION NOTE .)
   3	Battery clamp
   4	Battery and battery box (See BATTERY AND BATTERY BOX REMOVAL NOTE .)
   5	Battery box (See BATTERY BOX INSTALLATION NOTE .)
   6	Wiring harness (See WIRING HARNESS DISCONNECTION NOTE .)
   7	PCM connector (See PCM connector connection note .)
   8	Bracket
   9	Battery tray and PCM component (See BATTERY TRAY AND PCM COMPONENT INSTALLATION NOTE .)
   10	PCM (See PCM REMOVAL/INSTALLATION (VIN M) .)
