Boot Band Disassembly Note

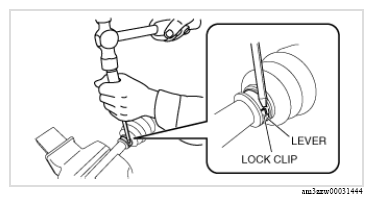

  1. Using a flat chisel and hammer, lightly tap the lever of the boot band to disconnect the lock clip.
    G13175800Courtesy of MAZDA MOTORS CORP.
  2. Remove the boot band using pliers.
    G13150051Courtesy of MAZDA MOTORS CORP.
