DTC U300A-62: Ignition Switch [DSC HU/Control Module]: Outline
DTC U300A:62 (DSC HU/Control Module) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Ignition switch |
| Detection condition |
- The DSC HU/Control Module detects that the following do not correspond.
- IG1 power supply condition received via CAN communication from body control module (BCM)
- IG1 power supply condition determined from DSC HU/Control Module power supply circuit (IG1)
|
| Fail-safe |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/Control Module (US)] .) |
| Possible cause |

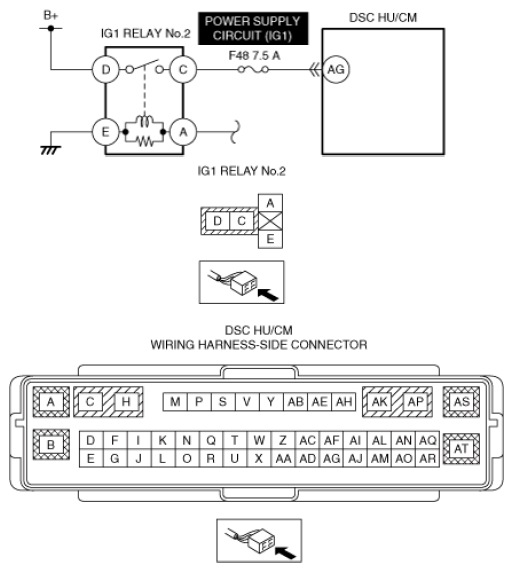

- IG1 relay No. 2 malfunction
- DSC HU/Control Module connector or terminals malfunction
- F48 7.5 A fuse malfunction
- Short to ground in DSC HU/Control Module power supply circuit (IG1)
- Open circuit in DSC HU/Control Module power supply circuit (IG1)
- Short to power supply circuit in DSC HU/Control Module power supply circuit (IG1)
- DSC HU/Control Module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
