DTC U3003-68: Power Supply System [DSC HU/Control Module]: Outline
DTC U3003:68 (DSC HU/Control Module) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Power supply system |
| Detection condition |
- The DSC HU/Control Module shuts down while the electric parking brake motor gear unit is operating.
|
| Fail-safe |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/Control Module (US)] .) |
| Possible cause |
- DTCs are stored in the PCM.
- Battery malfunction
- Generator malfunction
- DSC HU/Control Module connector or terminals malfunction

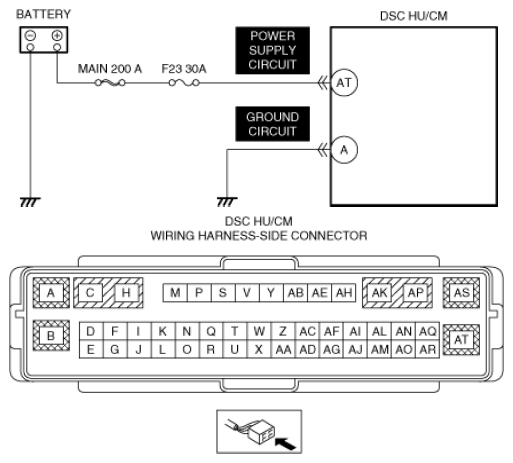

- Short to ground or open circuit in DSC HU/Control Module power supply circuit
- Open circuit in DSC HU/Control Module ground circuit
- DSC HU/Control Module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
