DTC C1139-64: AUTOHOLD Switch [DSC HU/Control Module]: Outline
DTC C1139:64 (DSC HU/Control Module) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
AUTOHOLD switch |
| Detection condition |
- The DSC HU/Control Module detects that the AUTOHOLD switch via CAN communication is on (stuck on) for 30 s or more.
|
| Fail-safe |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/Control Module (US)]
.) |
| Possible cause |
CAUTION:
- When the AUTOHOLD switch is continuously pressed down for a long period, DTCs may be detected. Therefore, always verify that DTCs being detected are due to how the customer has operated the switch.
- Electric parking brake switch connector or terminal malfunction
- Electric parking brake switch malfunction
- AUTOHOLD switch malfunction

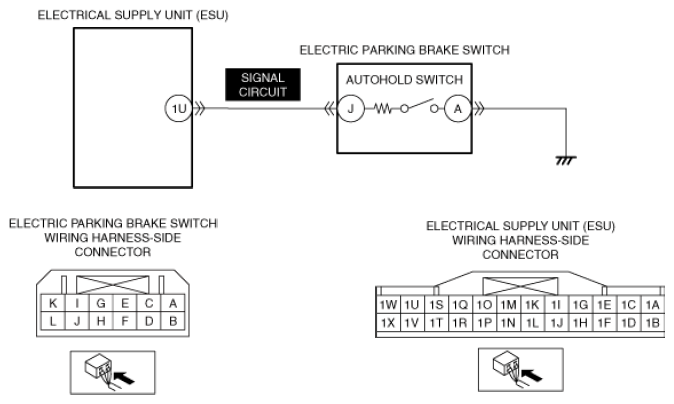

- Short to ground in AUTOHOLD switch signal circuit
- Electrical supply unit (ESU) malfunction
- DSC HU/Control Module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
