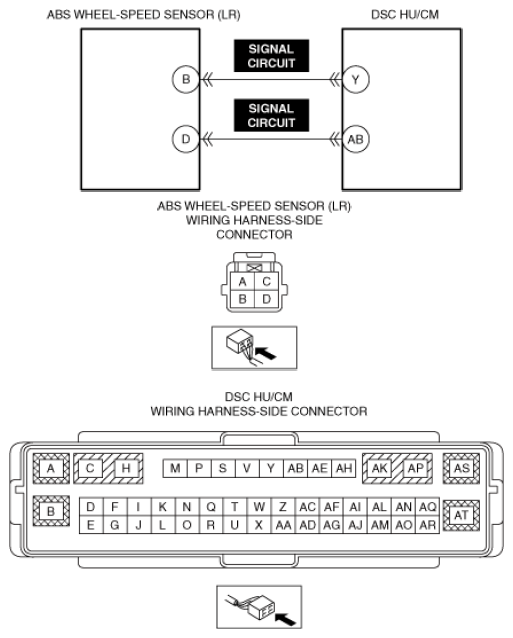

DTC C0037-19: Abs Wheel-Speed Sensor (LR) [DSC HU/Control Module]: Outline

DTC C0037:19 (DSC HU/Control Module) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	ABS wheel-speed sensor (LR)
Detection condition	The DSC HU/Control Module detects that the signal current of the ABS wheel-speed sensor (LR) is high.
Fail-safe	Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/Control Module (US)] .)
Possible cause	ABS wheel-speed sensor (LR) connector or terminals malfunction DSC HU/Control Module connector or terminals malfunction Short to power supply in ABS wheel-speed sensor (LR) signal circuit ABS wheel-speed sensor (LR) malfunction DSC HU/Control Module malfunction
Courtesy of MAZDA MOTORS CORP.
