DTC C0034-15: Abs Wheel-Speed Sensor (RF) [DSC HU/Control Module]: Outline

DTC C0034:15 (DSC HU/Control Module) DETECTION CONDITION AND POSSIBLE CAUSE

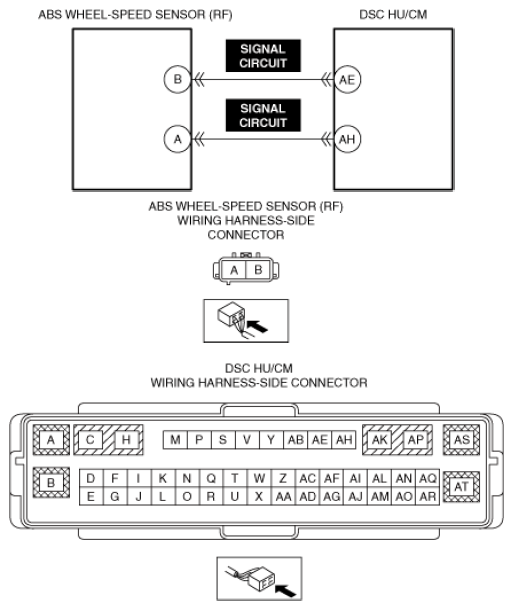

System malfunction location	ABS wheel-speed sensor (RF)
Detection condition	The DSC HU/Control Module detects that the signal current of the ABS wheel-speed sensor (RF) is outside of the specification.
Fail-safe	Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/Control Module (US)] .)
Possible cause	ABS wheel-speed sensor (RF) connector or terminals malfunction DSC HU/Control Module connector or terminals malfunction Short to ground in ABS wheel-speed sensor (RF) signal circuit Open circuit in ABS wheel-speed sensor (RF) signal circuit ABS wheel-speed sensor (RF) malfunction DSC HU/Control Module malfunction
Courtesy of MAZDA MOTORS CORP.
