DTC C0023-62: Brake Light [DSC HU/Control Module]: Outline
DTC C0023:62 (DSC HU/Control Module) DETECTION CONDITION AND POSSIBLE CAUSE

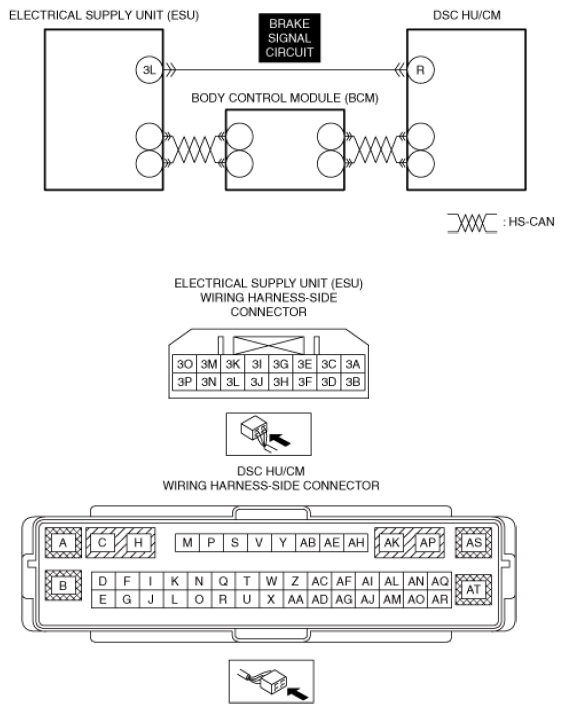

| System malfunction location |
Brake light |
| Detection condition |
- The DSC HU/Control Module detects any of the following conditions.
- Brake light status signal input by signal wiring harness and brake light illumination request signal output by CAN communication do not match
- Master cylinder pressure exceeds 20 MPa {204 kgf/cm2
, 2901 psi} even though brake light status signal input by signal wiring harness is off
- Brake light status signal input by signal wiring harness and brake light status signal input by CAN communication do not match
|
| Fail-safe |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/Control Module (US)]
.) |
| Possible cause |
- DTCs are stored in the body control module (BCM).
- DTCs related to the electrical supply unit (ESU) are stored.
- Electrical supply unit (ESU) connector or terminals malfunction
- DSC HU/Control Module connector or terminals malfunction
- Short to ground in electrical supply unit (ESU) brake signal circuit
- Short to power supply in electrical supply unit (ESU) brake signal circuit
- Open circuit in electrical supply unit (ESU) brake signal circuit
- Electrical supply unit (ESU) malfunction
- DSC HU/Control Module malfunction
|
