Decoration Link Assembly Note

CAUTION:
  • If the decoration link is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged.

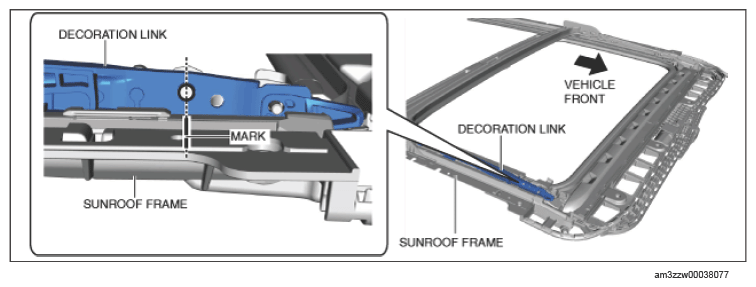

  1. Mark the position shown in the figure below for correct positioning.
G14583712Courtesy of MAZDA MOTORS CORP.
