Lower Panel Disassembly/Assembly [(Us)]: Passenger-Side: Notes

With passenger-side knee air bag module

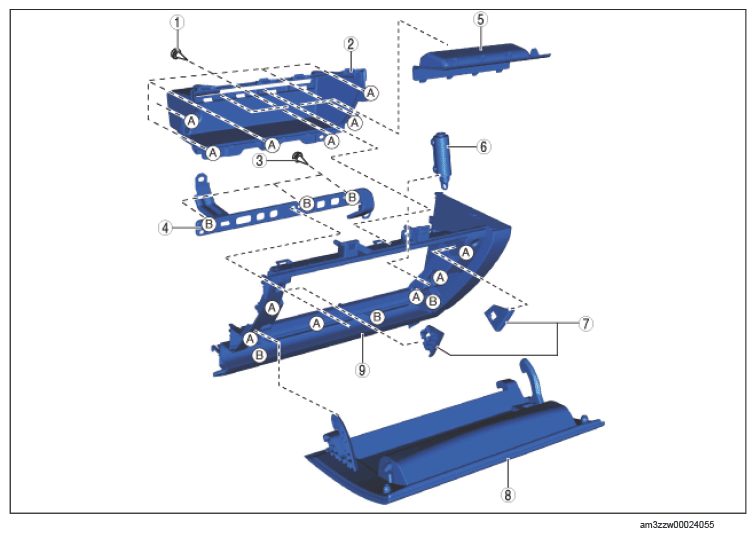

1. Disassemble in the order indicated in the table.

   Courtesy of MAZDA MOTORS CORP.

   LOWER PANEL COMPONENT OPERATIONS



   Component No.	Refer to
   1	Screw
   2	Glove box
   3	Screw
   4	Bracket
   5	Glove cover
   6	Damper
   7	Stopper
   8	Glove lid
   9	Passenger-side lower panel

2. Assemble in the reverse order of disassembly.
