Cup Holder Disassembly/Assembly

NOTE:
  • There are two types of cup holder. Verify the cup holder shape before performing the procedures.
  1. Disassemble in the order indicated in the table.

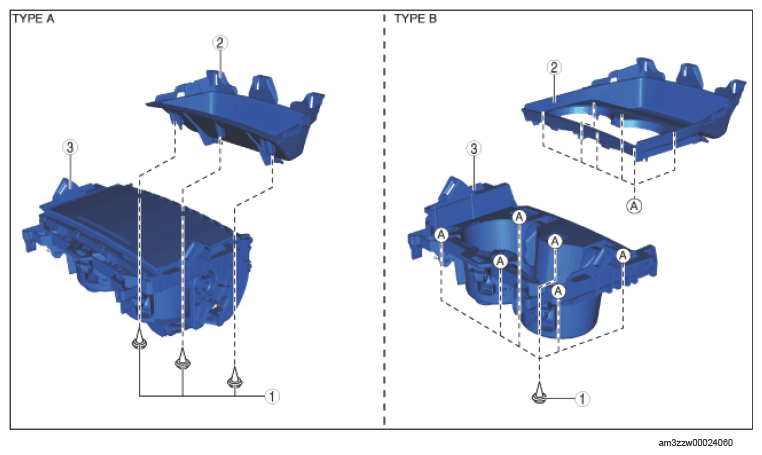

    G14583885Courtesy of MAZDA MOTORS CORP.
    CUP HOLDER COMPONENT OPERATIONS

    Component No. Refer to
    1 Screw
    2 Box mat
    3 Cup holder
  2. Assemble in the reverse order of disassembly.
