Windshield Washer Nozzle Removal/Installation

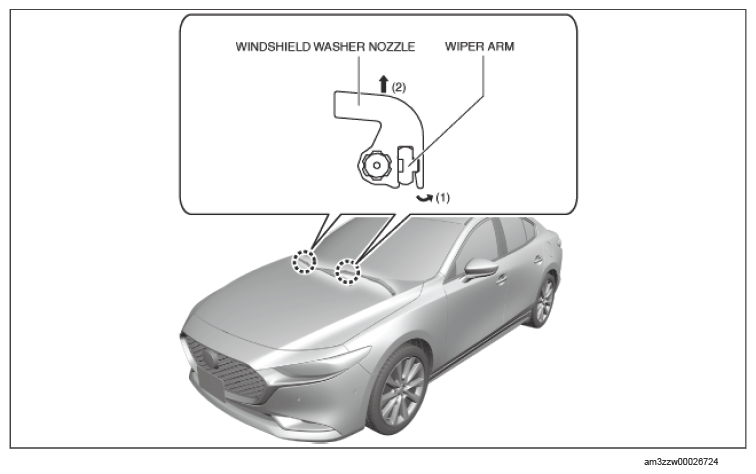

- Remove the windshield washer nozzle in the direction of the arrow (2) shown in the figure below while pressing the windshield washer nozzle tabs in the direction of the arrows (1) shown in the figure below.

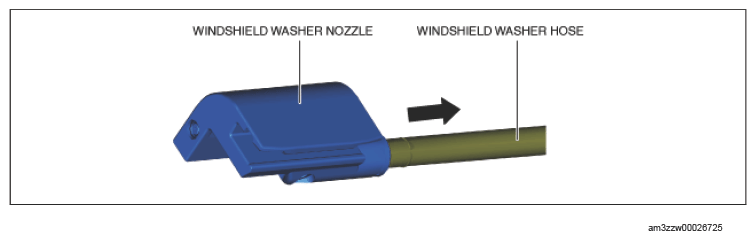

- Disconnect the windshield washer hose from the windshield washer nozzle.
- Remove the windshield washer nozzle.
- Install in the reverse order of removal.
- Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
