Headlight Cleaner Cover Removal/Installation

  1. Disconnect the negative battery terminal.
  2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION [(US)] .)
  3. Remove the front bumper.
  4. Remove the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION .)

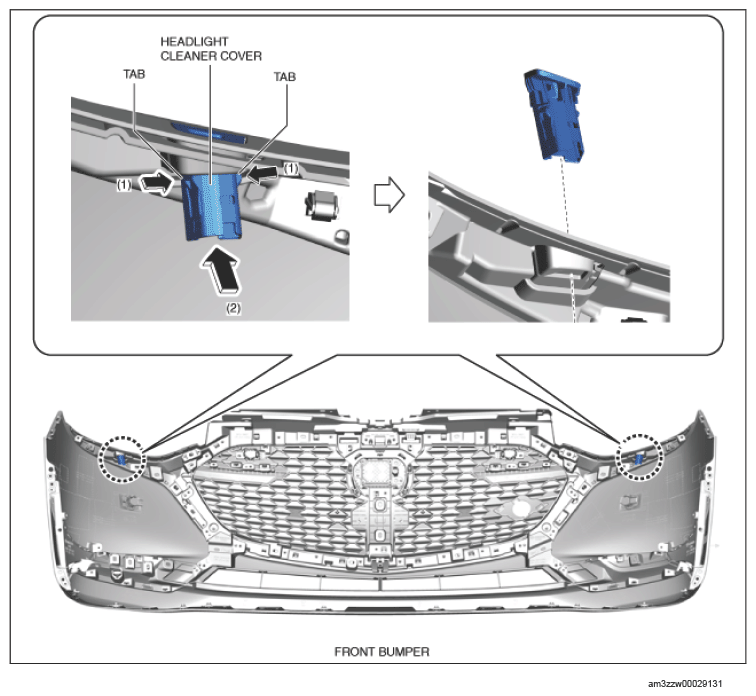

  5. While pressing the headlight cleaner cover tabs in the direction of arrows (1) shown in the figure below, push the headlight cleaner cover in the direction of arrow (2) to detach the headlight cleaner cover tabs from the front bumper.
    G14584186Courtesy of MAZDA MOTORS CORP.
  6. Remove the headlight cleaner cover.
  7. Install in the reverse order of removal.
