Manual Transaxle Location Index
WARNING: This page is about a different variant/trim than selected.

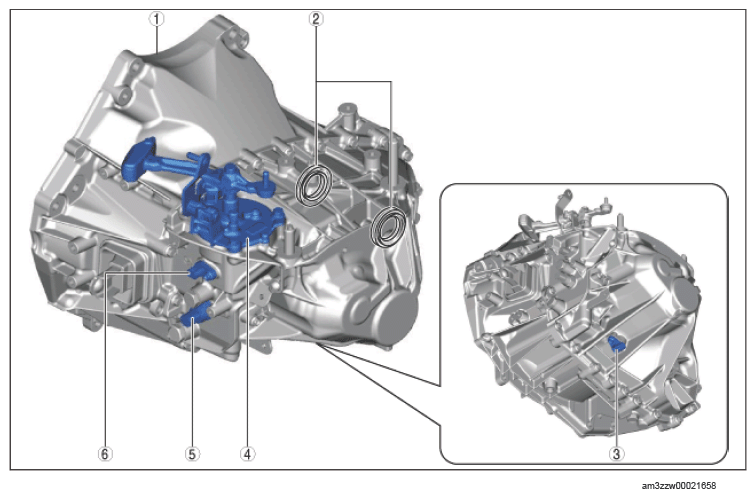

MANUAL TRANSAXLE COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Manual transaxle (See MANUAL TRANSAXLE OIL INSPECTION .) (See MANUAL TRANSAXLE OIL REPLACEMENT .) (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .) (See INSPECTION AFTER MANUAL TRANSAXLE OVERHAUL .) |
| 2 | Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT .) |
| 3 | Revolution sensor (See REVOLUTION SENSOR REMOVAL/INSTALLATION .) |
| 4 | Shift control module (See SHIFT CONTROL MODULE REMOVAL/INSTALLATION .) |
| 5 | Back-up light switch (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION .) |
| 6 | Neutral sensor (See NEUTRAL SENSOR REMOVAL/INSTALLATION .) |
