Insulator (Middle) Installation Note

  1. Align the stud bolts shown in the figure below with the insulator (middle) and install.

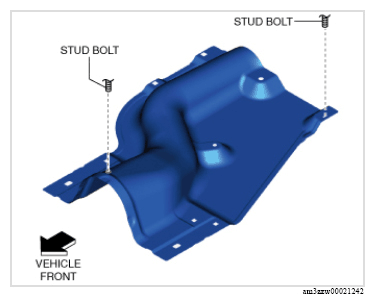

    2WD

    G13175170Courtesy of MAZDA MOTORS CORP.

    AWD

    G13175125Courtesy of MAZDA MOTORS CORP.
  2. Tighten the nuts to the specified torque.
