Entertainment screen

When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.

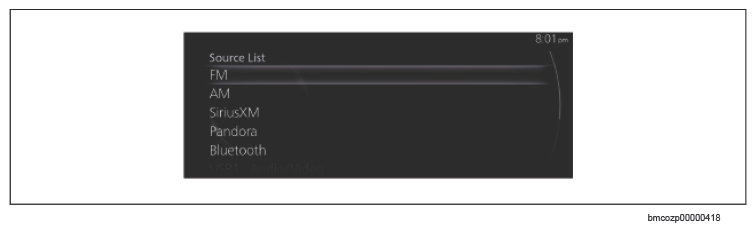

G14587377

Courtesy of MAZDA MOTORS CORP.

DISPLAY CONTENT AND FUNCTION DESCRIPTION

Display content	Function
FM	Switches to FM radio screen.
AM	Switches to AM radio screen.
Sirius XM ®	Switches to Sirius XM ® satellite radio screen.
Pandora ®	Switches to Pandora ® screen. NOTE: Pandora ® is not displayed in gray even if the connected mobile device is not compatible with Pandora ®.
Bluetooth <Device Name>	Switches to Bluetooth ® audio screen. NOTE: If available, the connecting device name is displayed. When Bluetooth ® is not available, such as no device is connected, only Bluetooth ® is displayed.
USB1 <Device Name>	Switches to USB audio/USB video screen. NOTE: If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.
USB2 <Device Name>	Switches to USB audio/USB video screen. NOTE: If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

NOTE:

When iPhone® is connected to the USB port of the USB port/SD card slot hub, Apple CarPlay™ is indicated at the position of USB1 indicated on the center display.
When Android™ is connected to the USB port of the USB port/SD card slot hub, Android Auto™ is indicated at the position of USB1 indicated on the center display.
