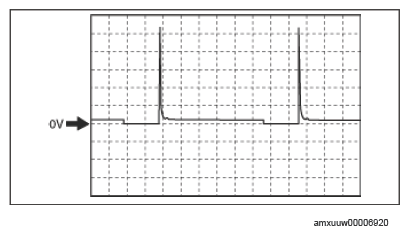

High Pressure Fuel Pump Control (-) Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1DJ (+)-body ground (-)

  Oscilloscope setting

• 10 V/DIV (Y), 5 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
