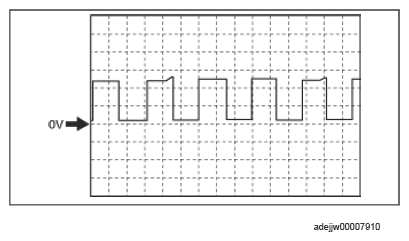

Electric Variable Valve Timing Motor (Rotation Pulse) Signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1BM (+)-body ground (-)

  Oscilloscope setting

• 2 V/DIV (Y), 5 ms/DIV (X), DC range

  Vehicle condition

• Idle (after warm up)
