Bracket Installation Note

1. Temporarily tighten the bolt as shown in the illustration.

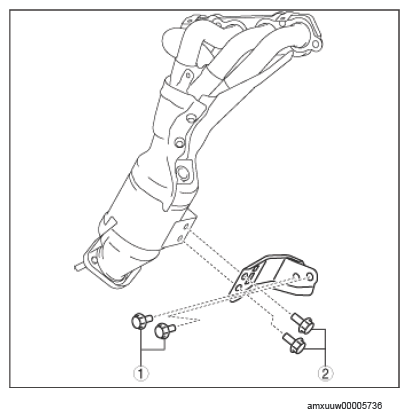

   Fig 1: Bracket Bolts Tightening Sequence

   Courtesy of MAZDA MOTORS CORP.
2. Tighten the bolt as shown in the illustration.

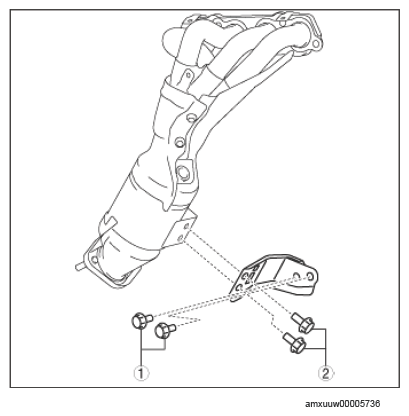

   Fig 2: Bracket Bolts Tightening Sequence

   Courtesy of MAZDA MOTORS CORP.

Tightening torque

38-51 Nm {3.9-5.2 kgfm, 29-37 ft.lbf}
