Starter Disassembly/Assembly

Disassemble in the order indicated in the table.

Assemble in the reverse order of disassembly.

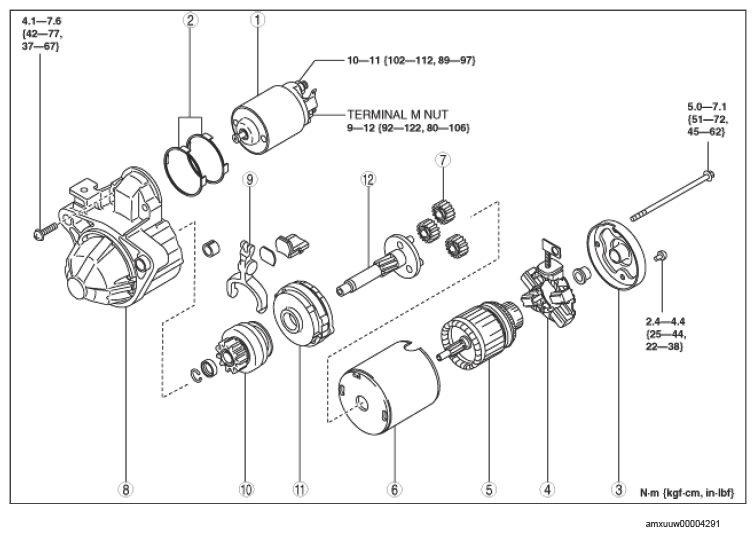

Fig 1: Starter Components With Torque Specification

G14588421

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
