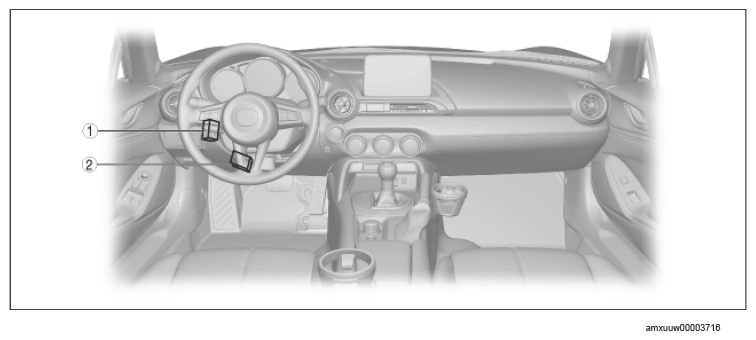

Control System Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .) See BODY CONTROL MODULE (BCM) INSPECTION .) See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION .) See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	ELECTRICAL SUPPLY UNIT (ESU) See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION .) See ELECTRICAL SUPPLY UNIT (ESU) INSPECTION .) (See ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION .)
