Electrical System: Fuse: Replacement

• When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse malfunctions again, the circuit probably has a short and the wiring should be inspected.
• Be sure the negative battery terminal is disconnected before replacing a main fuse.

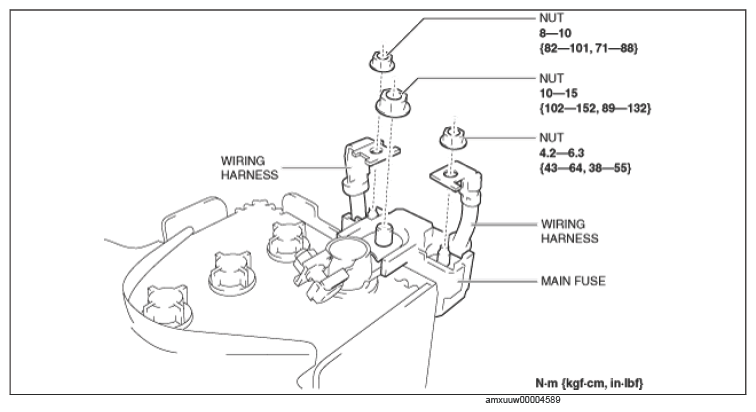

Fig 1: Main Fuse, Wiring Harness And Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

• When replacing a pullout fuse, use the fuse puller.

Courtesy of MAZDA MOTORS CORP.
