Exhaust System Insulator Removal/Installation: Notes

1. Remove the shift.
2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
3. Remove the power plant frame. (See POWER PLANT FRAME REMOVAL/INSTALLATION [SJ6A-EL] .) (See POWER PLANT FRAME REMOVAL [M66M-D] .) (See POWER PLANT FRAME INSTALLATION [M66M-D] .)
4. Remove the exhaust system insulator in the order shown in the illustration.
5. Install in the reverse order of removal.

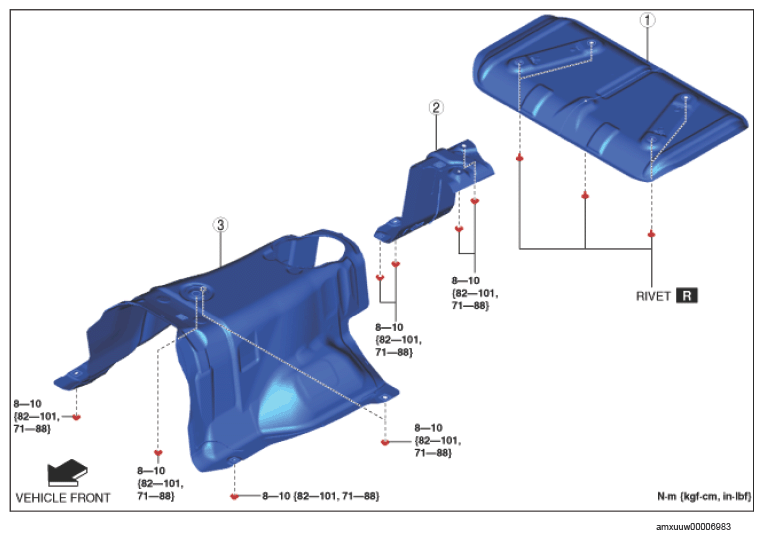

Fig 1: Exhaust System Insulator Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Insulator (rear) (See INSULATOR (REAR) REMOVAL NOTE .)
2	Insulator (middle)
3	Insulator (front)
