Exhaust Manifold Installation Note

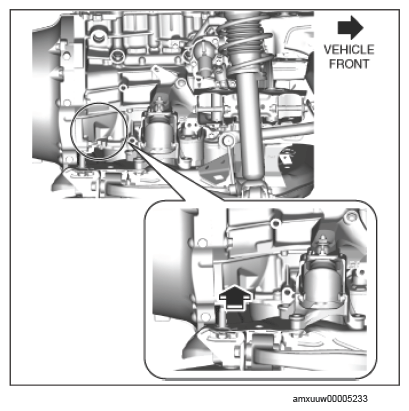

Push the position shown in the illustration and move the engine toward the left side of the vehicle.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- The exhaust manifold can be installed by securing a space for installation. Therefore, the procedure is divided into one person moving the engine and one person installing the exhaust manifold.

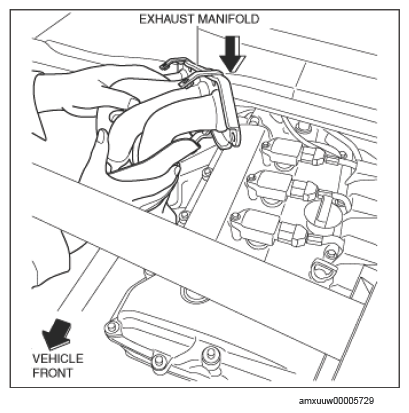

Install the exhaust manifold.

Courtesy of MAZDA MOTORS CORP.
Turn a shaft of SST (49 E017 5A0) and lower engine until engine mount rubber performs a sitting lightly in front crossmember.

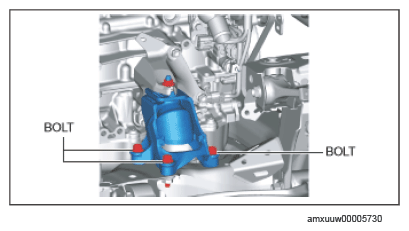

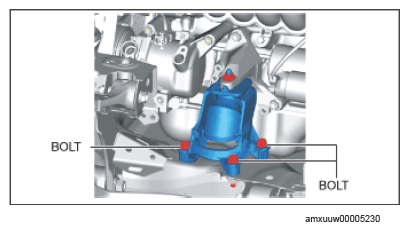

Temporarily tighten the bolt as shown in the illustration.
RH

Courtesy of MAZDA MOTORS CORP.

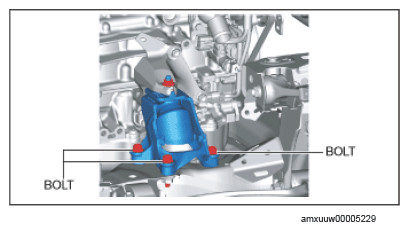

LH

Courtesy of MAZDA MOTORS CORP.
Turn a shaft of SST (49 E017 5A0) and lower engine more.

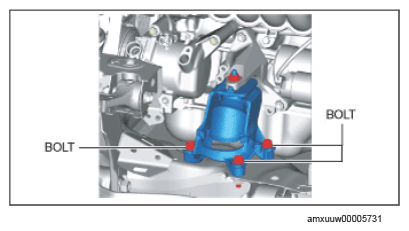

Tighten the bolt as shown in the illustration.
RH

Courtesy of MAZDA MOTORS CORP.

LH

Courtesy of MAZDA MOTORS CORP.

Tightening torque

33-45 Nm {3.4-4.5 kgfm, 25-33 ftlbf}
Remove the SST (49 E017 5A0) and SST (49 UN30 3050).

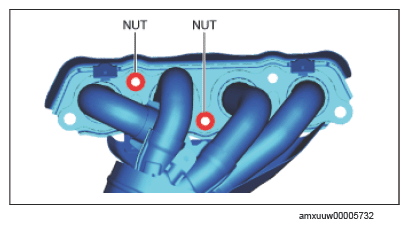

Temporarily tighten the nut as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

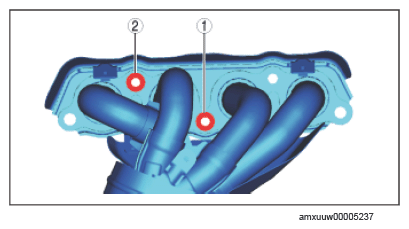

Tighten the nut as shown in the illustration.

Fig 1: Exhaust Manifold Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

33-53 Nm {3.4-5.4 kgfm, 25-39 ftlbf}
Temporarily tighten the nut as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

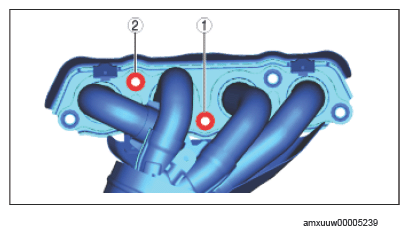

Tighten the nut as shown in the illustration.

Fig 2: Exhaust Manifold Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

43-64 Nm {4.4-6.5 kgfm, 32-47 ftlbf}
Tighten the nut as shown in the illustration.

Fig 3: Exhaust Manifold Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

43-64 Nm {4.4-6.5 kgfm, 32-47 ftlbf}

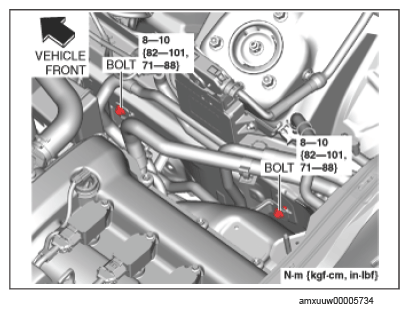

Tighten the bolts shown in the illustration.

Fig 4: SST Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

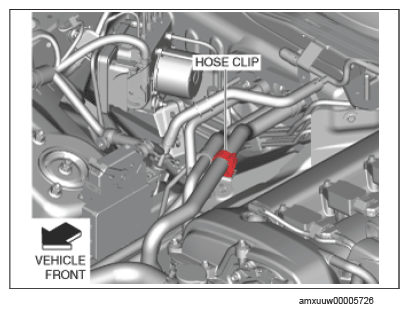

Connect the hose clip shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

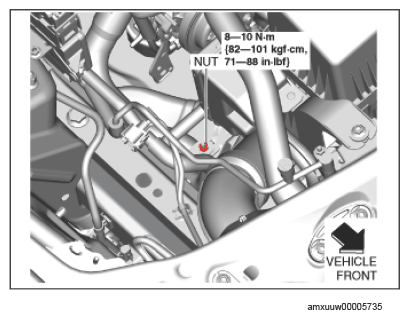

Tighten the nut shown in the illustration.

Fig 5: Exhaust Manifold Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
Install the front splash shield No. 1. (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
Install the front mudguard No. 2. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
Install the front wheels and tires. (See GENERAL PROCEDURES (SUSPENSION) .)
Install the front suspension tower bar (joint) and front suspension tower bar (RH). (With front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)

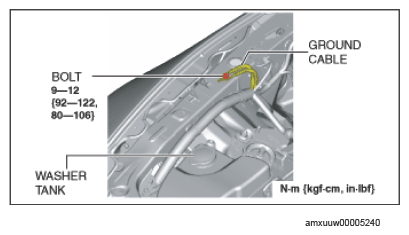

Install the ground cable shown in the illustration.

Fig 6: Ground Cable Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
