Rectifier (Using An Analog Circuit Tester)

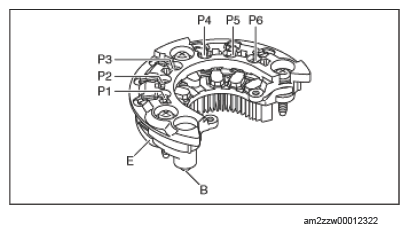

  1. Inspect for continuity of the diodes using an analog circuit tester.
    G14588402Courtesy of MAZDA MOTORS CORP.
    • If not as specified, replace the rectifier.
    CONTINUITY CIRCUIT SPECIFICATION

    Analog circuit tester Continuity
    Negative Positive
    E P1, P2, P3, P4, P5, P6 Yes
    B No
    P1, P2, P3, P4, P5, P6 E No
    B Yes
