Procedure For Communication Between Coil Antenna And Remote Transmitter
While the push button start indicator light (green) is flashing, press the top part of the remote transmitter against the center of the push button start.

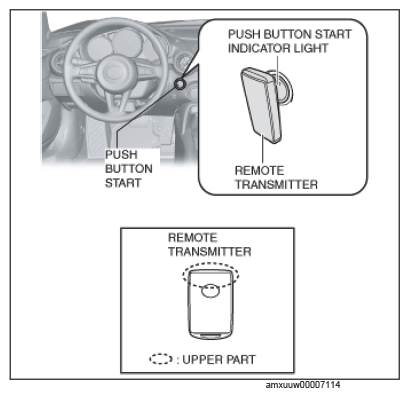

Type A
Courtesy of MAZDA MOTORS CORP.

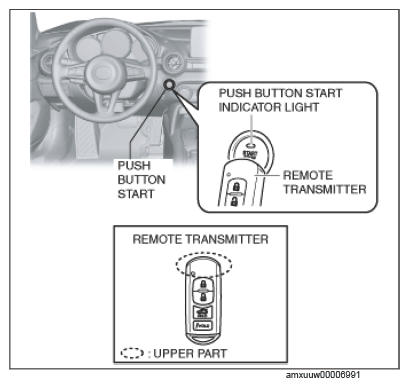

Type B
Courtesy of MAZDA MOTORS CORP.
NOTE:
The coil antenna is integrated with the push button start.
