Washer Motor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out.

When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)
Remove the washer motor in the direction of arrow (2) shown in the figure while moving it in the direction of arrow (1) shown in the figure.

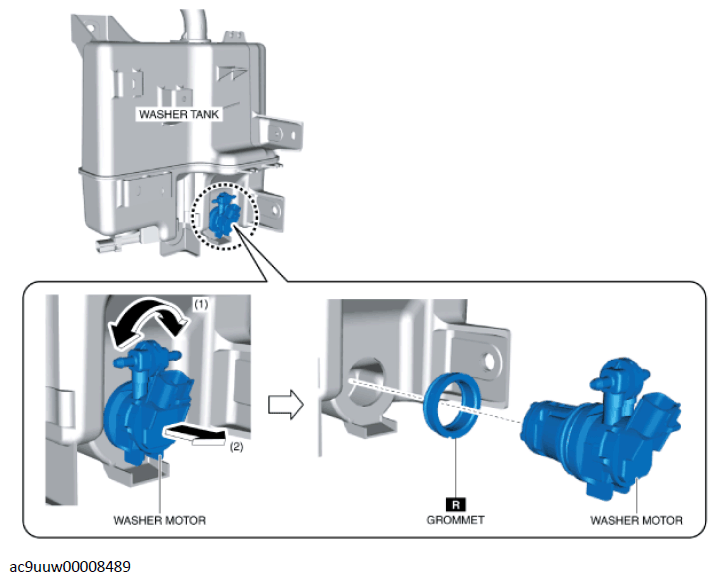

Fig 1: Removing Washer Motor
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
