EPS Control Module Removal Note

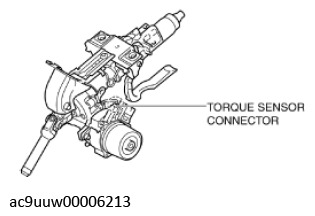

  1. Disconnect the torque sensor connector (EPS Control Module side).
    G11438902Courtesy of MAZDA MOTORS CORP.
  2. Remove the EPS Control Module.
