Windshield Washer Nozzle Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Disconnect the windshield washer hose from the windshield washer nozzle.

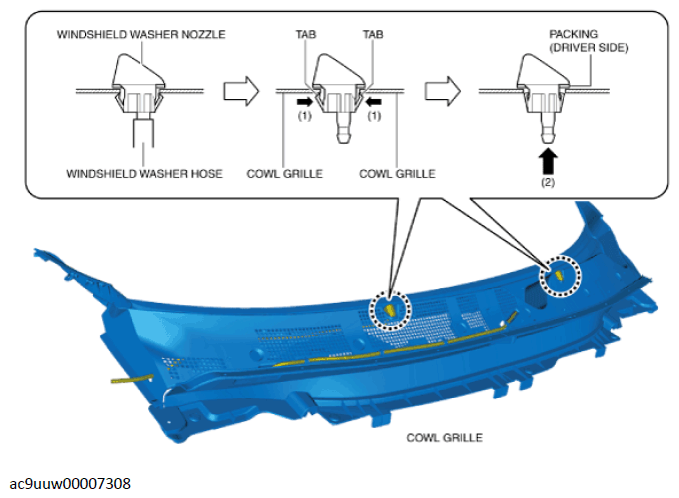

    Fig 1: Pressing Windshield Washer Nozzle Tabs
    G11432985Courtesy of MAZDA MOTORS CORP.
  4. While pressing the windshield washer nozzle tabs in the direction of arrows (1) shown in the figure, press the windshield washer nozzle in the direction of arrow (2) to detach the windshield washer nozzle tabs from the cowl grille.
  5. Remove the windshield washer nozzle.
  6. Install in the reverse order of removal.
  7. Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
