Washer Motor Inspection

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out.

When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector.

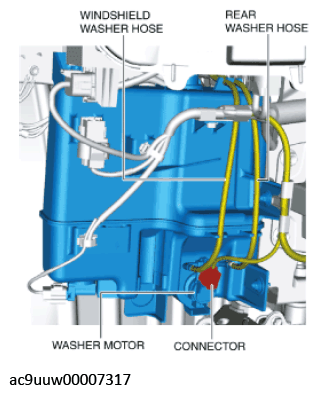

Fig 1: Locating Washer Motor Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the washer hoses from the washer motor.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.
Apply battery voltage to washer motor terminal A, and connect terminal B to ground.

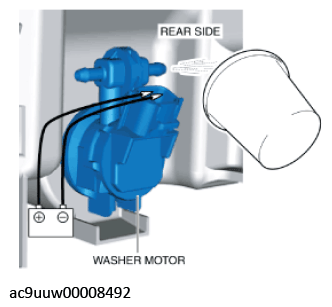

Fig 2: Applying Battery Voltage
Courtesy of MAZDA MOTORS CORP.
Verify that washer fluid sprays from the front side of the washer motor.

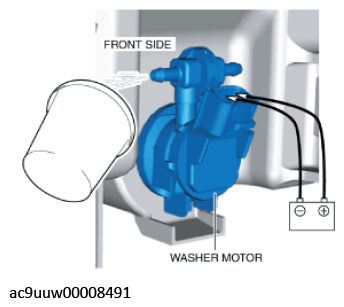

Fig 3: Checking Washer Motor (Front Side)
Courtesy of MAZDA MOTORS CORP.

If washer fluid does not spray from the front side of the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
Apply battery positive voltage to washer motor terminal B, and connect terminal A to ground.
Verify that washer fluid sprays from the rear side of the washer motor.

Fig 4: Checking Washer Motor (Rear Side)

Courtesy of MAZDA MOTORS CORP.

If washer fluid does not spray from the rear side of the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
