Door Lock Switch Inspection

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the power window sub switch cover. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION )
  3. Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
  4. Verify that the continuity is as indicated in the table.

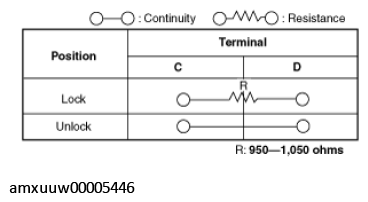

    Fig 1: Door Lock Switch Terminals Continuity Chart
    G11273483Courtesy of MAZDA MOTORS CORP.

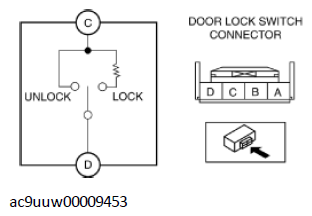

    Fig 2: Door Lock Switch Circuit Diagram
    G11432634Courtesy of MAZDA MOTORS CORP.
    • If the continuity is not as indicated in the table, replace the door lock switch.
