High-Mount Brake Light Short-Cord Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)

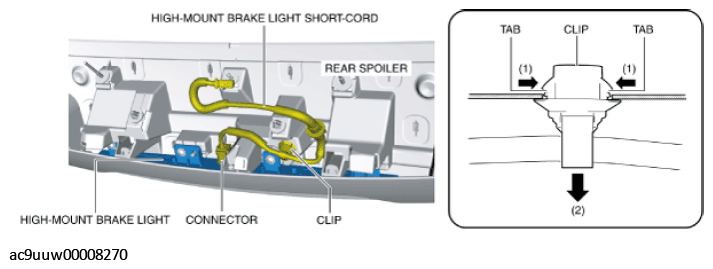

  4. While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the rear spoiler.
    Fig 1: Detaching Clip Tabs From Rear Spoiler
    G11435157Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.
  6. Remove the high-mount brake light short-cord.
  7. Install in the reverse order of removal.
