Rear Scuff Plate Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear scuff plate pins shown in the figure with the inner panel.

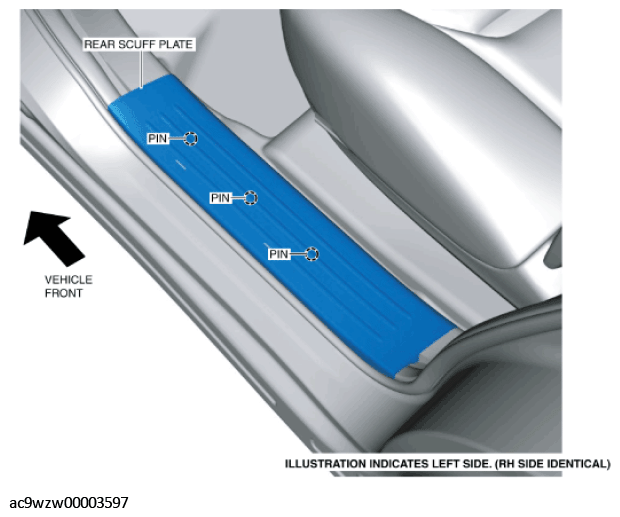

    Fig 1: Rear Scuff Plate And Pins
    G11435005Courtesy of MAZDA MOTORS CORP.
  2. Press the rear scuff plate in the direction of arrow (1) shown in the figure and install tab B to the trunk side trim.

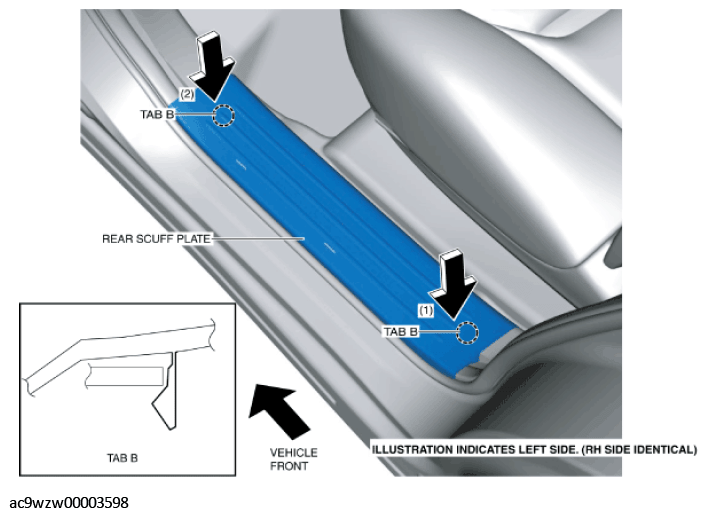

    Fig 2: Installing Tab B To Trunk Side Trim
    G11435006Courtesy of MAZDA MOTORS CORP.
  3. Press the rear scuff plate in the direction of arrow (2) shown in the figure and install tab B to the B-pillar lower trim.
  4. Press the rear scuff plate in the direction of arrow (1) shown in the figure and install clip to the inner panel.

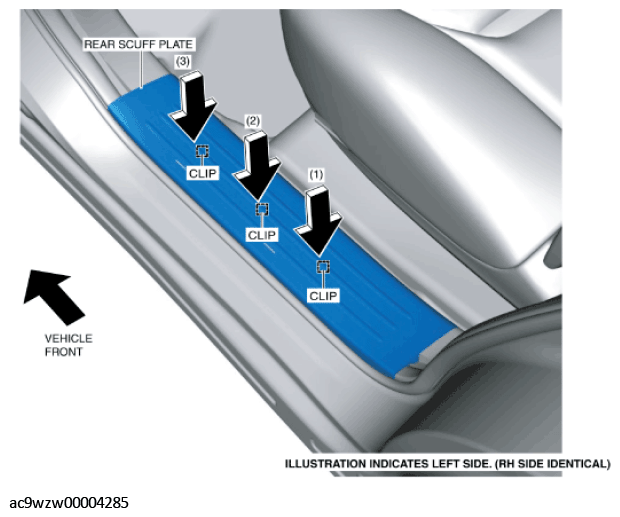

    Fig 3: Installing Clip To Inner Panel
    G11435007Courtesy of MAZDA MOTORS CORP.
  5. Press the rear scuff plate in the direction of arrow (2) shown in the figure and install clip to the inner panel.
  6. Press the rear scuff plate in the direction of arrow (3) shown in the figure and install clip to the inner panel.
  7. Press the rear scuff plate in the direction of arrow (1) shown in the figure and install tab A to the trunk side trim.

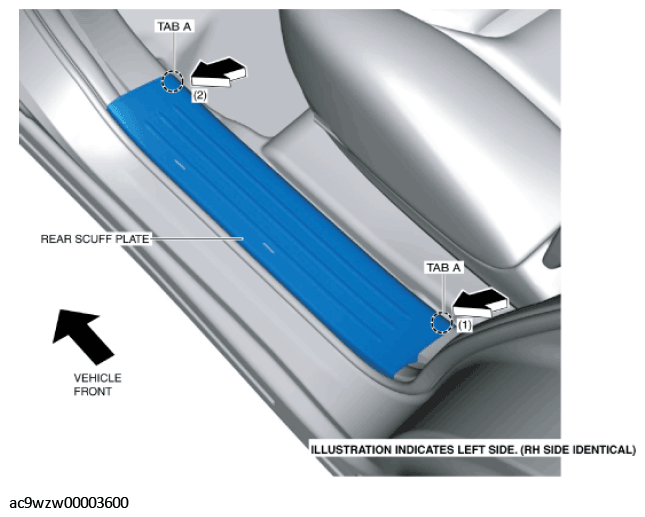

    Fig 4: Installing Tab A To Trunk Side Trim
    G11435008Courtesy of MAZDA MOTORS CORP.
  8. Press the rear scuff plate in the direction of arrow (2) shown in the figure and install tab A to the B-pillar lower trim.
