Front Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
2. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
3. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
4. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
5. Front bumper slider (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
6. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
7. Front over fender bracket (See FRONT OVER FENDER BRACKET REMOVAL/INSTALLATION .)
8. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
9. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
10. Front fender insulator No. 1 (See FRONT FENDER INSULATOR No. 1 REMOVAL/INSTALLATION .)
11. Front fender insulator No. 2 (See FRONT FENDER INSULATOR No. 2 REMOVAL/INSTALLATION .)
Remove the bolts.

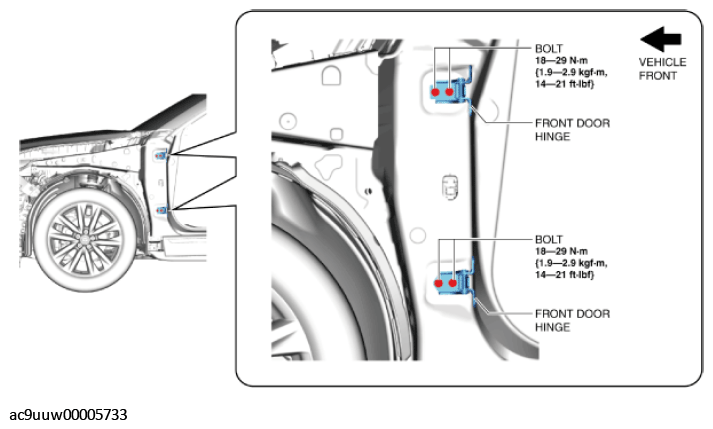

Fig 1: Front Door Hinge And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front door hinge.
Install in the reverse order of removal.
Adjust the front door. (See DOOR ADJUSTMENT .)
