Rear Console

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    6. Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION .)
  3. Remove the rear heat duct No. 1. (See REAR HEAT DUCT No. 1 REMOVAL/INSTALLATION .)

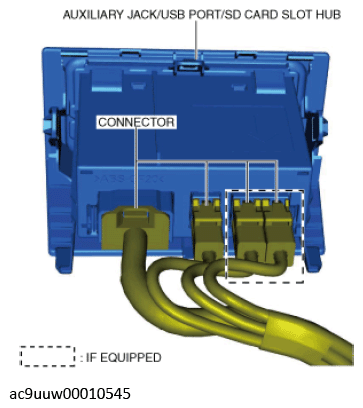

  4. Disconnect the connectors.
    G12266477Courtesy of MAZDA MOTORS CORP.

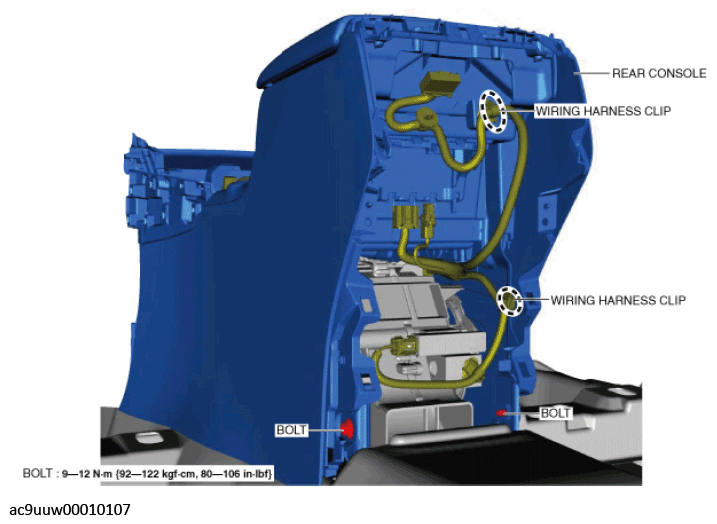

  5. Remove the wiring harness clips.
    Fig 1: Rear Console Bolts With Torque Specification
    G12266478Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts.
  7. Remove the bolts.
    Fig 2: Rear Console Bolts With Torque Specification
    G11434993Courtesy of MAZDA MOTORS CORP.
  8. Pull the rear console in the direction of the arrow shown in the figure and remove it while detaching the clips.
    G11434994Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
