Headliner Removal/Installation: Installation

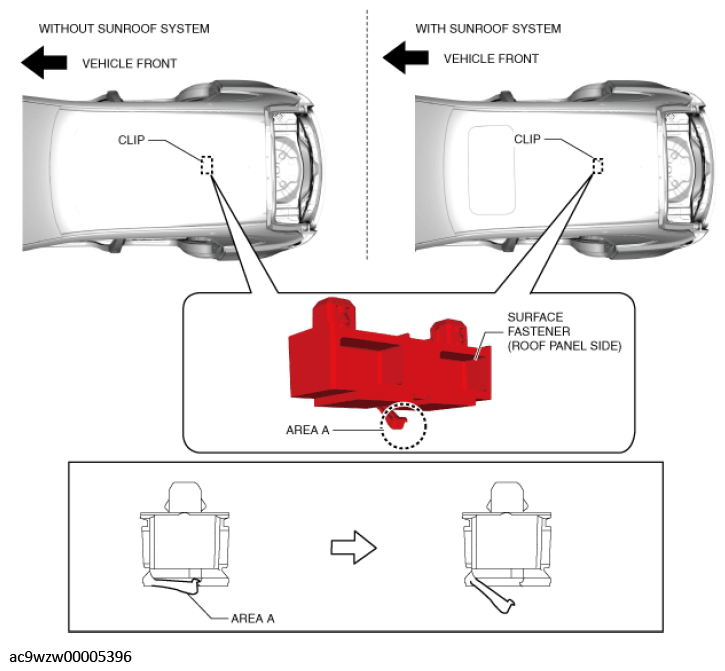

  1. Pull out area A of the clip for the surface fastener (roof panel side) shown in the figure using a flat head screwdriver.
    G12266430Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • To avoid adhering the surface fastener to the headliner before installing the headliner, pull out area A of the clip.

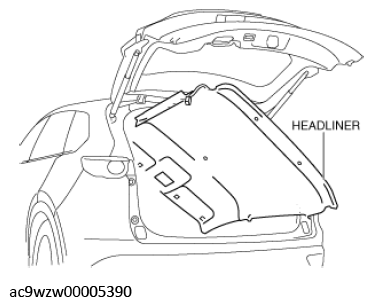

  2. Insert the headliner from the liftgate opening.
    G12266414Courtesy of MAZDA MOTORS CORP.

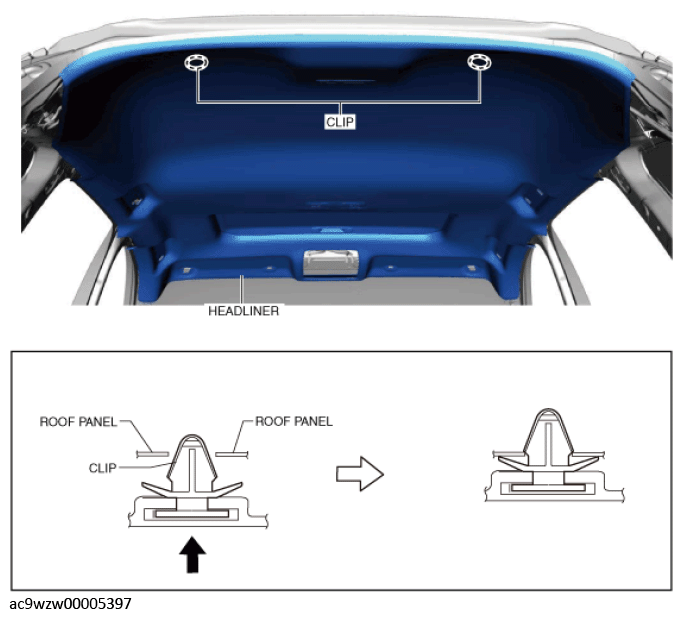

  3. Press the headliner in the direction of the arrows shown in the figure and detach the clips.
    G12266432Courtesy of MAZDA MOTORS CORP.

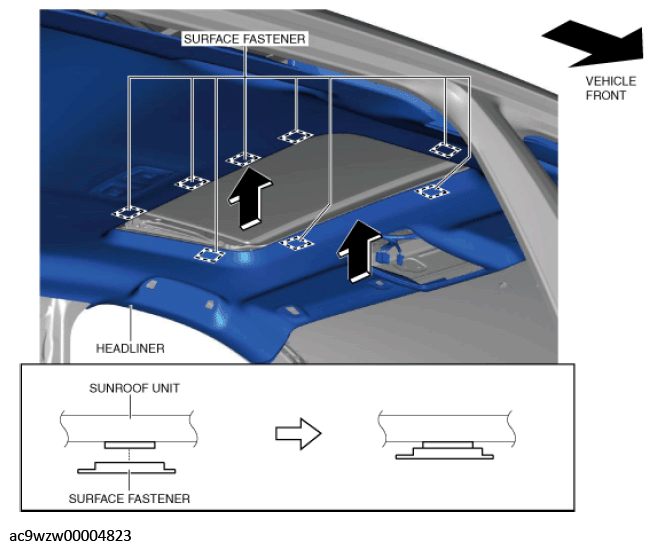

  4. Press the headliner in the direction of the arrows shown in the figure and detach the surface fasteners. (with sunroof system)
    G12266433Courtesy of MAZDA MOTORS CORP.

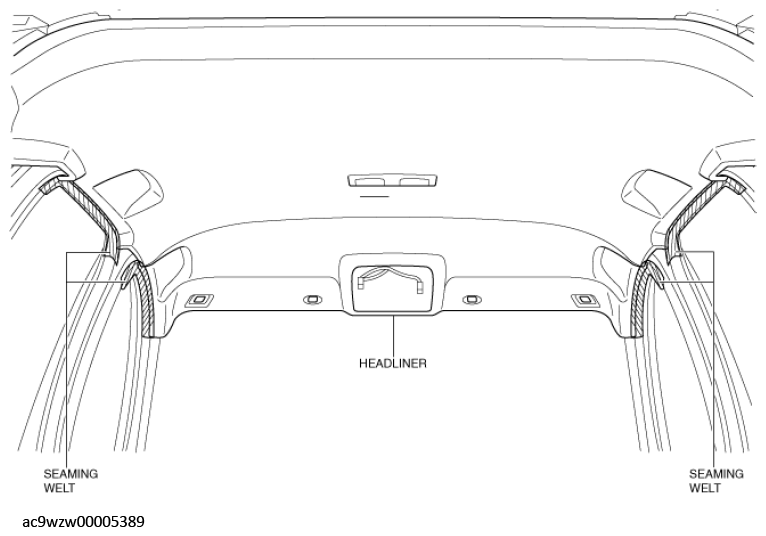

  5. Install the seaming welts shown in the figure.
    G12266412Courtesy of MAZDA MOTORS CORP.
  6. Install the wiring harness clips.
    G11434723Courtesy of MAZDA MOTORS CORP.

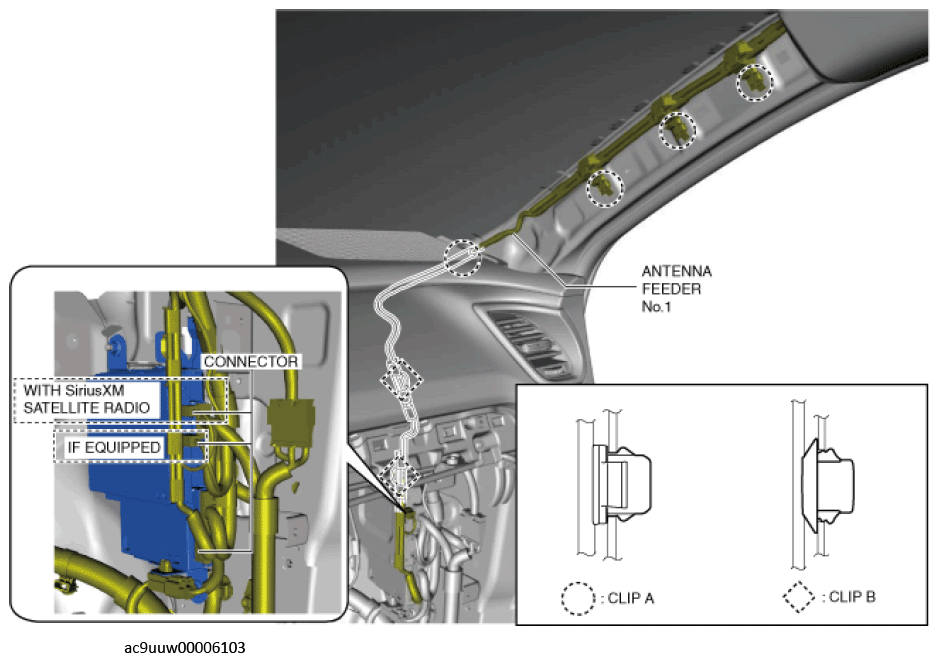

  7. Connect the connector.
    G12266420Courtesy of MAZDA MOTORS CORP.
  8. Install the wiring harness clip.
  9. Connect rear washer hose C with the joint pipe.

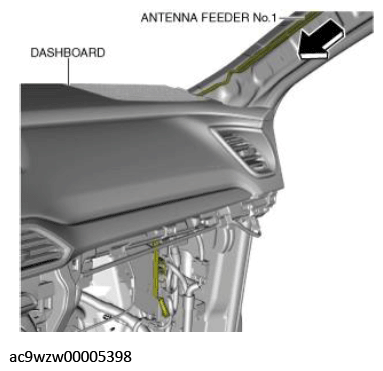

  10. Insert the antenna feeder No. 1 in the direction of the arrow shown in the figure.
    G12266437Courtesy of MAZDA MOTORS CORP.

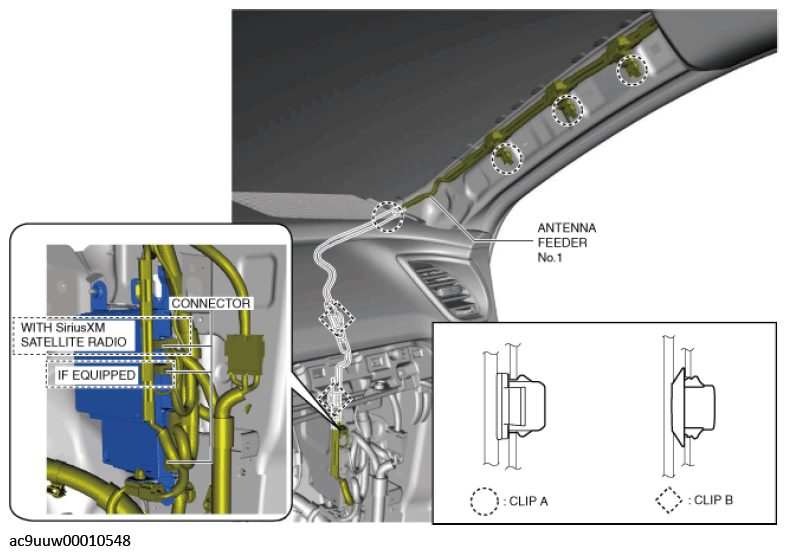

  11. Connect the connectors.
    G12266407Courtesy of MAZDA MOTORS CORP.
  12. Install the clips A and clips B in the position shown in the figure.
  13. Install the following parts:
    1. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    3. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    5. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    8. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    9. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    10. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    11. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    12. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    13. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    14. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    15. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    16. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    17. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    18. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    19. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    20. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    21. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    22. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    23. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    24. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    25. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    26. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    27. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    28. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    29. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    30. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    31. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    32. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

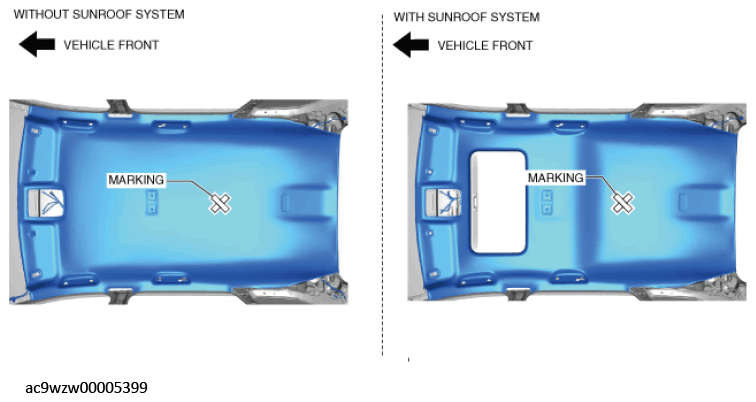

  14. Press the marked location by hand and press fit the surface fastener.
    G12266439Courtesy of MAZDA MOTORS CORP.
  15. Remove the marking.
  16. Move the second-row seat back to their upright positions.
  17. Move the front seats to their upright positions.
  18. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
