Dashboard Pad

  1. Disassemble in the order indicated in the table.

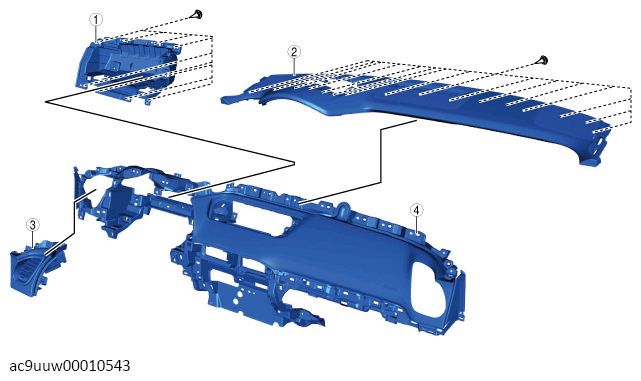

    G13701882Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Dashboard box
    2 Dashboard pad upper
    3 Dashboard panel
    4 Dashboard pad lower
  2. Assemble in the reverse order of disassembly.
